Shree Engineering

Salient Features :

Label Roll Empty - Machine Stop System with Alarm
Missing Label in Roll - Machine Stop System with Alarm
Special Label Sensor for sensing Transparent Film Labels which does not have any sensing mark on it.
Option of Contact Coder, Hot Foil Coder, HP Cartridge Coder and Inkjet Coder with various speed ranges available.
Toughened Glass or Acrylic Safety Cabinet for Machine
Tower Light showing the machine status / operation
Colour or Mono Touch Screen with PLC for machine operation and showing various error messages and information on display
Special Sensing system for checking missing label on product
Low Compressed Air - Machine Stop with Alarm system for pneumatically o- operated coding system
Vision System for checking Barcode, presence or absence of Coding or Pharma code on labels
Vision System with OCR system for checking coding on labels
Online pneumatically operated product rejection system

Model - Self Adhesive Labeling Machine	SEL-120
Label Height :	8 mm to 70 mm Standard*
Label Length :	12 mm Minimum
Label Roll Dia. :	400 mm
Core Dia. :	75/76 mm
Gap Between two Labels :	Appx. 3 mm
Product Diameter :	15 mm to 85 mm*
Electrical :	220 VAC Single Phase Power Supply (50/60 Hz)
Power :	1.5 Amp.
Capacity :	0.75 Kw
Speed :	Up to 120 Labels per minute depending on Product and Label Size
Conveyor height :	830-875 mm*
Overall dimension :	1750 mm(L) X 870 mm(W) X 1100 mm (H)
Machine Direction of Movement :	Left to Right from operator side

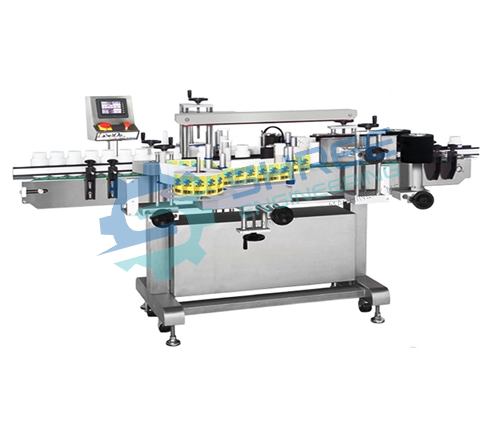

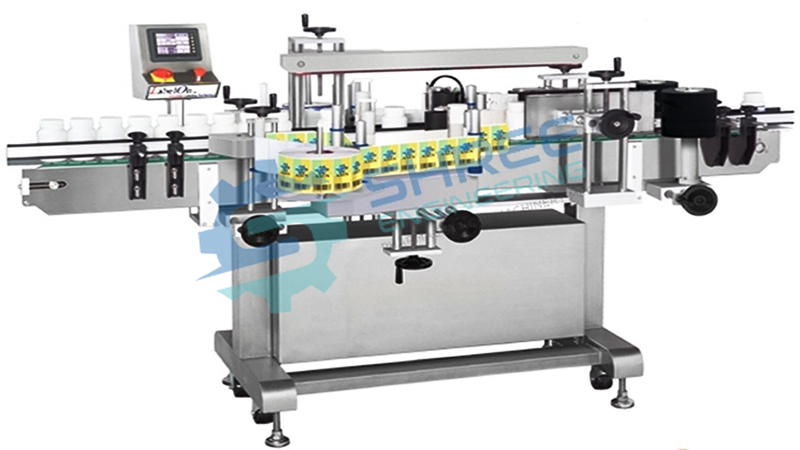

Wrap Around Labelling Machine Shree Engineering
