Salient Features :

No Vial - No Fill System
All contact parts made of SS316 material with easy removal system for Autoclaving/Sterilization
Machine constructions in SS304 material
Separate Variable Speed Drive for Powder Hopper
No Crossover Contamination during Charging of Powder due to new Design of Powder Hopper
Hopper can be completely dismantle for easy cleaning
Minimum residue of Powder in Hopper at the end of batch resulting in less wastage of powder
Tool Less adjustment of Doctor Blade and Wiper Blade saves valuable time and easy for setting
Tool Less change over for Powder Hopper and Well Agitator
Filling Accuracy of +/- 1% depending on powder at controlled humidity below 30% Rh
Built in Rubber Stoppering System
Multiple dosing system with the help of change parts
Built in Turn Tables with Separate Drive for speed control of in feed and out feed of vials
Various safety features including Clutch system for Vial Breakage
Machine Bottom with all over minimum clearance of 6" Height
Moving conveyor above the top plate maintaining proper gap for meeting current application needs.
Automatic Infeed and Exit of Vials
Powder Hopper for charging with better position and design without crossing the line.
No Stopper - Machine Stop System
Low Air - Machine Stop System
Low Vacuum - Machine Stop System
Heavy Duty Mounting system for Powder Wheel for Trouble Free long term operation

Note :

Technical Specification

Model	SEPF-120
Output/Hour*	Up to 120 Fills / Min for Single Dose. Up to 60 Fills / Min for Double Dose. Up to 40 Fills / Min for Triple Dose. Up to 30 Fills / Min for Four Doses.
Fill Size***	Fill range depending upon vial opening and bulk density of powder. Under controlled level of Humidity (i.e. 25%)
Fill Size***	Fill range depending upon vial opening and bulk density of powder. Under controlled level of Humidity
Accuracy	±1% depending upon consistency and uniformity of bulk density of Injectable powder
Electrical Specifications**	Main Machine and Conveyor	1 HP / 415Volts / 50 Hz.
	Scrambler & Unscramble	0.5 hp x 2 , 415 volts , 50 HZ
	Magnetic coil	300 watt. 2 amps.
	Vacuum Pump	3 HP / 415Volts / 50 Hz.
Pneumatic Air	Filtered, oil free, sterile low pressure Air at 2 kg/cm2(2/3 bar)
Vacuum Line	20 HG
Height of conveyor.	800 to 850 mm adjustable.
Machine Dimensions**	3000mm (L) x 1050 mm (W) x 1900 mm (H)
Case Dimensions	3200mm (L) x 1250 mm (W) x 2100 mm (H)
Net Weight	850 Kgs
Gross Weight	1200 Kgs

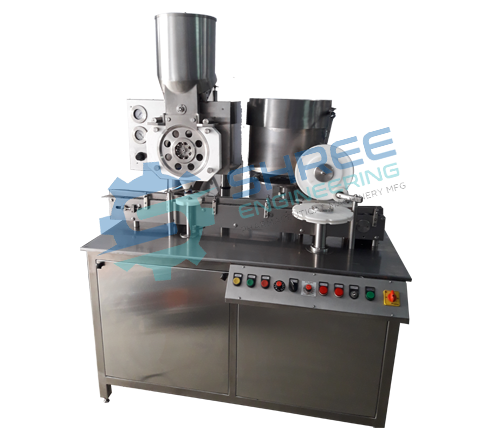

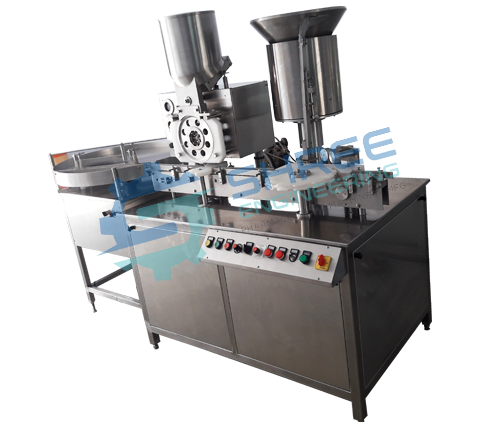

Powder Filling Machine Shree Engineering
