Salient Features :

Optional Features Of Double Side Labeler

Round bottle labeling attachment. ( combo Round and Flat)
Label Roll Empty - Machine Stop System with Alarm
Option of Contact Coder, Hot Foil Coder, HP Cartridge Coder and Inkjet Coder with various speed ranges available.
Tower Light showing the Labeling Machine status / operation
Color or Mono Touch Screen with PLC for machine operation and showing various error messages and information on display
Vision System for checking Barcode, presence or absence of Coding or Pharma code on labels
Vision System with OCR system for checking coding on labels
Online pneumatically operated product rejection system

Model - Two Side Sticker Labeling Machine	SEDSL-120
Direction of Movement	Left to Right
Label size	10mm to 85mm width
Output	Up to 120 bottles/minute
Electrical Specification**	Main Motor	0.5 HP, 1400 rpm, 3 Phase, 430 V, 50 Hz.
	Conveyor	0.25 HP / 415 Volts / 50 Hz.
	Conveyor Motor	0.25 HP/415 Volts/AC/50 Hz Variable Speed
	Top Pressing Motor	0.25 HP/415 Volts/AC/50 Hz Variable Speed
	Despenser-1 Stepper Motor	6Amp, 60 KG Torque
	Despenser-2 Stepper Motor	6Amp, 60 KG Torque
Label Length	240mm Maximum
Label Space	3mm between labels
Machine Power	220 Volts/AC/50 Hz Single Phase
Machine panel	MMI base Unit
Front and Back Sticker Labeling Machine Dimensions	2500mm(L)X1800mm(W) Conveyor 800mm Ht. 50mm adjustable
Sensor	Sick Germany /Imported
Case Dimensions	3000 mm(L) x 2250 mm(W) x 1950 mm (H)

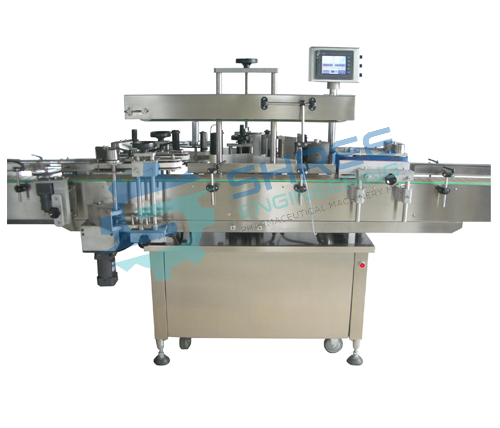

Double Side Sticker Labelling Machine Shree Engineering
