Salient Features :

± 1 % Filling accuracy on single dose.
No Bottle No Filling System.
Rigid vibration free construction for trouble free performance
S.S. Elegantly matt finished body.
Minimum charge overtime, from one size to another container or fill size.
Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction wear surface, smooth and noiseless conveying.
Bottle Stopping arrangement through Pneumatic system.
Separate A/c drives for main motor & conveyor belt.
Safety guard for conveyor gearbox, motor and pneumatic cylinders.
Inbuilt protection against over current, voltage fluctuation, short circuit in A/c frequency drive.

Optional Features :

Technical Specification

Model - Bottle Liquid Filling Machine	SEBF-40	SEBF-80
Output/Hour*	900-1800 containers	2400 to 4800*
Number of head/Syringe	2 Nos.	4 Nos
Fill Size	5 ml to 1000 ml	5ml to 1000ml
Electric Specification	1 HP / 415 Volts / 50 Hz	1 HP / 415 Volts / 50 Hz
Machine Dimensions	700 mm (L) x 700 mm (W) x 710 mm (H)	1800 L x 1000 W x 1600 H
Net Weight	120 Kgs.	750 Kgs
Change parts required	(A) Syringes, (B) Nozzle, (C) Inlet & outlet hose pipe	(A) Syringes, (B) Nozzle, (C) Inlet & outlet hose pipe
Required Utility	Electrical supply : 3 Phase + Neutral + Earthing Electric Load : 1.30 KW Air Pressure : 6 bar pressure 0.5 CFM	Electrical supply : 3 Phase + Neutral + Earthing Electric Load : 1.30 KW Air Pressure : 6 bar pressure 0.5 CFM

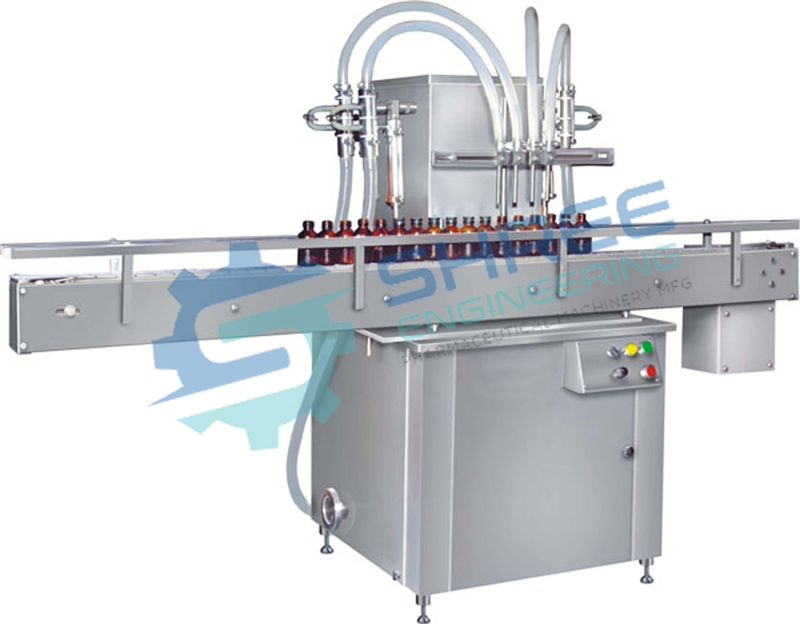

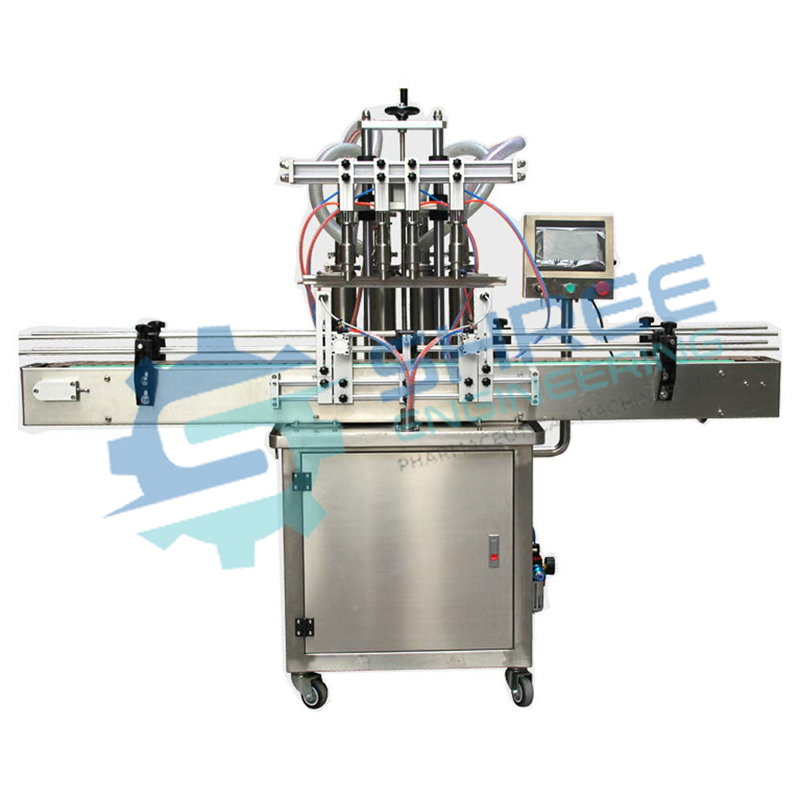

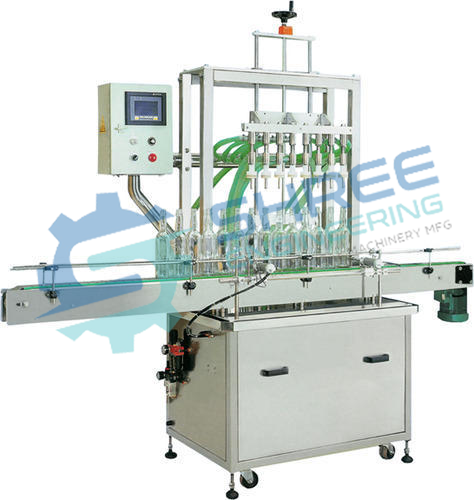

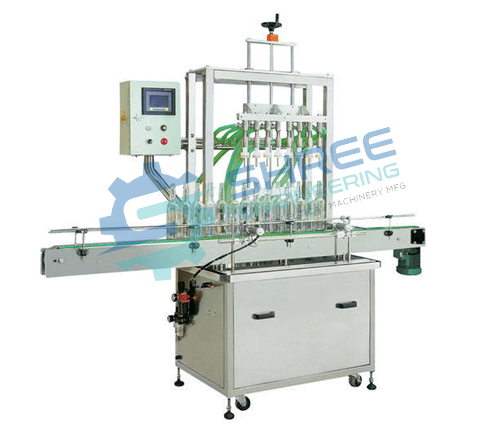

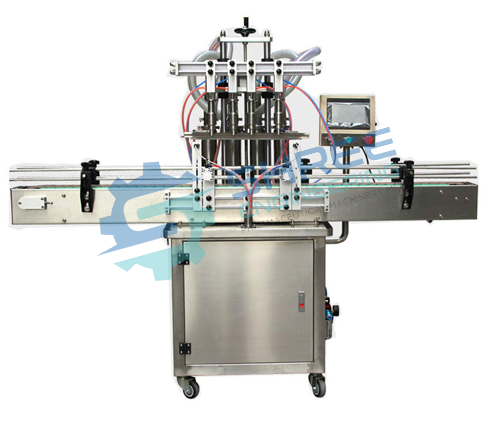

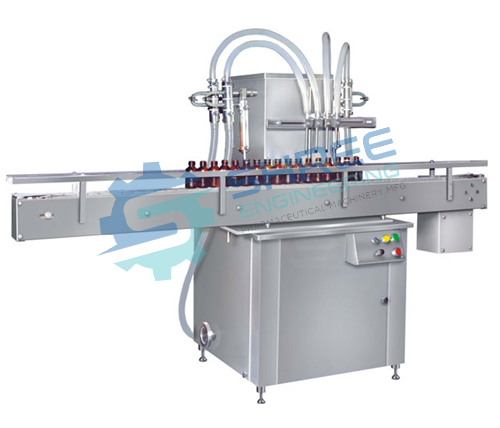

Bottle Filling Machine Shree Engineering
