Salient Features :

No container No cap arrangement.
SS elegantly matt finished body.
Single motor synchronizes conveyor, star wheel.
Adjustable height of conveyor belt, to align with other machine of the line.
Sealing pressure can be varied to suit different gauges and size of caps.
Low noise level, low power consumptions.
Self-lubricating UHMW-PE guide profile for low friction wears surface, smooth and noiseless conveying.
SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion.
Synchronized A/C drives to synchronize, Conveyor, Star wheel and Platform turret & capping bowl.
Adjustable bottle height gauge for easy and quick setting.
Easy regulation of speed with variable frequency drive.
Vertical tray collection unit duly filled and sealed ampoules.
VFD drive for easy speed regulating (delta make).
Stainless Steel west tips collector at the bottom side of machine.

Optional Features :

Technical Specification

Model	SECA-60	SECA-120
Output/Hour*	1000 to 3000 bottles.	4000 to 6000 bottles.
Directional Movement	Left to Right	Left To Right
Number Of Head	1	4
Power Consumption	1 HP / 415 Volts / 50 Hz.	1 HP / 415 Volts / 50 Hz.
Height of Conveyor**	800 mm to 900mm	800mm to 900mm
Machine Dimensions**	1500 mm (L) x 800 mm (W) x 2150 (H) Approx.	1800 mm (L) x 900 mm (W) x 2150 (H) Approx.
Net Weight	350 Kgs. Approx.	450 Kgs. Approx.
Gross Weight	550 Kgs. Approx.	550 Kgs. Approx.
Change parts required	(A) Container: Star Wheel, Back Guide (B) Cap Die, Delivery Chute, Bowl	(A) Container: Star Wheel, Back Guide (B) Cap Die, Delivery Chute, Bowl
Required Utility	Electrical supply: 1 Phase + Neutral + Earthing Electrical load : 1 KW	Electrical supply: 1 Phase + Neutral + Earthing Electrical load : 1.25 KW

Note: All Output Depends on bottle size, cap size and type of cap.

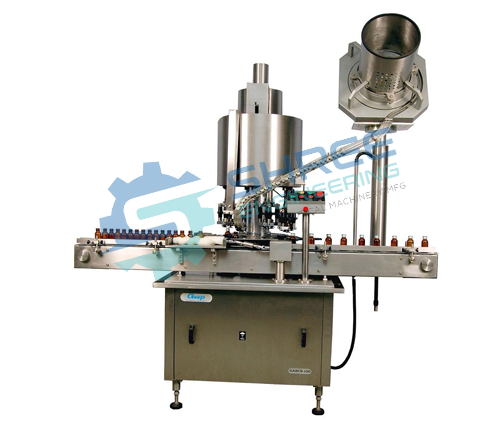

Capping / Sealing Machine Shree Engineering
