Features :

Geneva Mechanism used to maintain timing between two wash.
Five Wash (Four inner and one outer).
Stationary Spray nozzles, Collection tray & Recirculation System avoid Contamination of water cycle.
To adjust sequence of washes as per customer's SOP.
Solenoid valve for each washing sequence reduce leakage & wastage of water.
Higher pressure centrifugal pumps to clean bottle properly.
Pumps and Tanks are fitted on separate stand for easy cleaning & maintenance.
Height adjustable bottle guide for pet or light weight bottle.
Separate Control panel provide for locate as per customer's convenient an avoid any accident

Note :

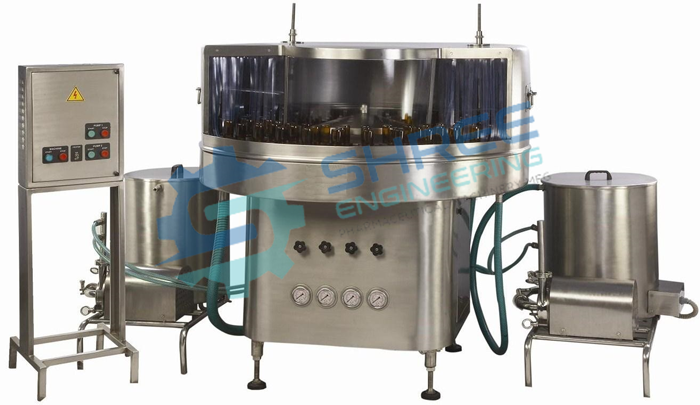

Model - Rotary Bottle Washing Machine		SEW-120
Output/Hour*		2600 to 6000
No .of Container Holder		96
Direction of Machine**		Clock wise
Power Consumption**		Main Motor	0.5 HP / 415 Volts / 50 Hz
		Pump Two Nos.	0.5 HP x 2 = 1 HP / 415 Volts / 50 Hz
		Electrical Heater	3 Kw.
Tank Capacity		75 Ltrs. S.S. 304 (2 Nos.)
Wash Cycle		4 Inner+1 Outer
Working height		850 to 900 mm
Machine Dimension		1500 (L) x 1750 (W) x 1300 (H)
Case Dimensions	Machine	1600 (L) x 1600 (W) x 1550 (H)
Case Dimensions	Tank	1550 (L) x 1000 (W) x 1550 (H)
Net Weight		450 kg ( approx )
Gross Weight		750 kg ( approx )
Change parts required		(A) Neck Dia: Bottle holding pocket. (B) Flat Container: Special type of cup.
Flat / Square		30 mm to 80 mm (Length), Respectively 10 mm to 50 mm (Width) Respectively height 58 mm x 190 mm

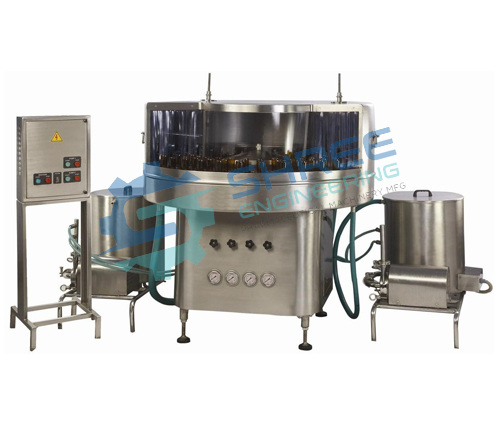

Bottle Washing Machine Shree Engineering
